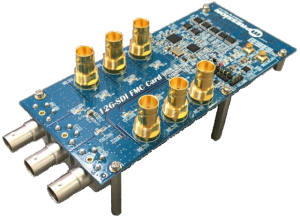

12G-SDI FMC Card (Discontinued)
FMC daughter card for SDI interface extension at multi-rate of 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI
The 12G-SDI FMC Card is a daughter card that is expandable to an SDI interface with 4 channels that have multi-rates (SD-SDI/HD-SDI/3G-SDI/6G-SDI/12G-SDI). These expansions are possible by combining Intel® Arria® 10 GX FPGA Development Kit and other FPGA boards that are compatible with the FPGA Mezzanine Card (FMC) Standard.
- Quad SDI inputs/outputs, a sync reference input
- Right-angle type BNC connectors are used in an input/output and a sync reference input
- External reference clock for FPGA transceiver can be supplied through an SMP connector
Note: Intel® Arria® 10 GX FPGA Development Kit can be purchased separately.
Specifications
| Power Supply | 3.3 V, 1.8 V (VADJ), 12 V |
| External Dimensions | 69.0 mm x 154.5 mm |
| PCB Material/Number of Layers | FR-4/6 layers |
| SDI Interface | Input x4/output x4/reference input x1 |
| I2C Connector | I2C connector pins for external PC control |
| SMP Connector |
Clock differential input for FPGA internal transceiver x1 Samtec's SMP-PS-P-GF-ST-TH2 |
| FMC Connector | Samtec's ASP-134488-01 |
| BNC Connector (Right Angle Type) | Hirose Electric's BLR-PC-12G |
| BNC Connector (Straight Type) | Hirose Electric's BNC(75)-BPR-PC-12G |
| 12G-SDI Cable Driver/Reclocker | Texas Instruments' LMH1218 |
| 12G-SDI Cable Equalizer/Reclocker | Texas Instruments' LMH1219 |
| Video Clock Generator | Texas Instruments' LMH1983 |
| Ultra-low Jitter Clock Generator | Texas Instruments' LMK03328 |
| SD/HD Video Sync Separator | Texas Instruments' LMH1981 |

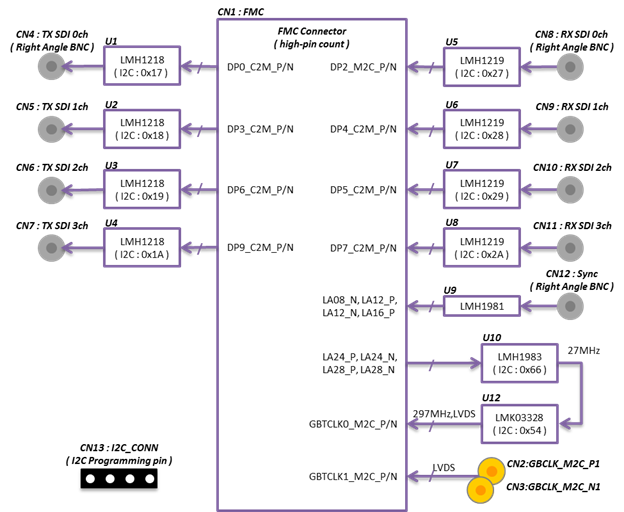

Block Diagram
Block Diagram

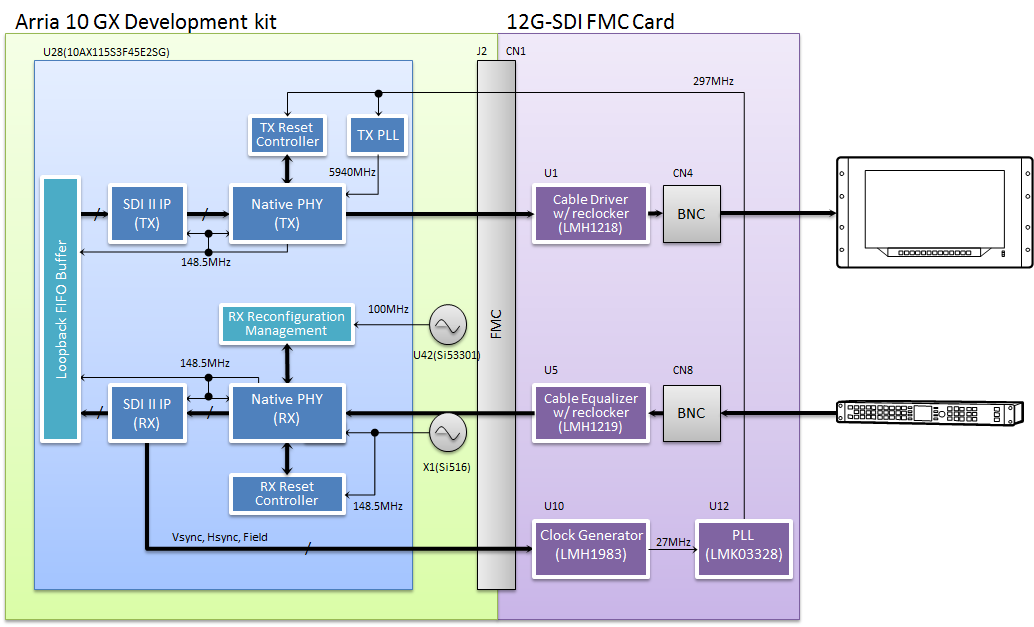

Reference Design
Reference Design ( Hardware design configuration)
Ordering Information
| Product Name | 12G-SDI FMC CARD |
| Part Number | 12GSDIFMCCD |
Packing List
| 12G-SDI FMC Card | 1 pcs. |
|---|---|
| Hexagonal spacer (diameter of screw M2.6, length 37 mm) | 4 pcs. |
| Hexagonal spacer (diameter of screw M2.6, length 10 mm) | 2 pcs. |
| Pan head screw (diameter of screw M2.6, length 6 mm) | 6 pcs. |
| Jumper cap (pitch 2.54 mm) | 2 pcs. |
| Packing list/precautions (Japanese) | 1 sht. |
| Packing list/precautions (English) | 1 sht. |
