MMC+ Card
 |
|
 |
MMC + Card is the eMMC evaluatuion card of the Multimedia plus card type. This card is mounted a Micron 4GByte eMMC (embedded Multi Media Card). This card is able to evaluate the various FPGA and SoC evaluation board with MMC or SD interface slot.
Features
| Main devices: | Micron eMMC MTFC4GACAJCN-1M WT (JEDEC standard version5.0) |
| Interface: | MMC/ MMC plus/ SD card interface |

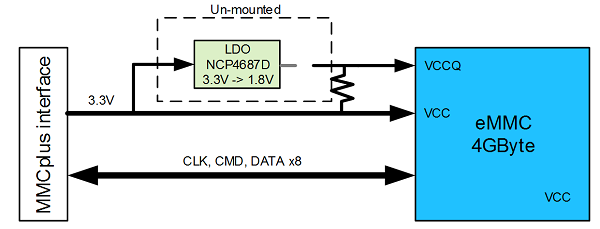

Block Diagram
List of Confirmed Boards
| Product Name | Bender |
|---|---|
| DK-DEV-5CSXC6N (Cyclone® V SoC) | Intel® |
| Mpression Sodia (Cyclone® V SoC) | Macnica |
| TMDSSK335 (Sitara) | TI |
| TMDXEVM3358 (Sitara) | TI |
| TMDXEVM437X (Sitara) | TI |
| TMDXSK437X (Sitara) | TI |
| Beagle Bone Black (Sitara) | TI |
| EVMK2G (Keystone) | TI |
* Note: This card was verified by these devices. HOWEVER, it is not guaranteed for all operation. In addition, this card might not be operate with OS update or changing device drivers of verified devices.
List of Confirmed Card Readers
| Product Name | Bender |
|---|---|
| ADR-3ML38BK | Sanwa supply |
| 400-ADR105 | Sanwa supply |
| 400-ADR304BK | Sanwa supply |
| AR200 | Anker |
| SPC39V1W | Silicon Power |
| TS-RDP8K | Transcend |
* Note: This card was verified by these devices. HOWEVER, it is not guaranteed for all operation.
