ST2059-1&2 IP Package

Video transfer over IP, Supports PTP

SMPTE ST 2059 is a standard for synchronization of video equipment over an IP network. The standard is based on IEEE1588. This IP generates a timing signal standardized in SMPTE ST 2059 using IEEE1588v2 Precision Time Protocol (PTP). The timing signal is utilized as “GenLock” signal which has been used in conventional A/V system.

Features

• Supports IEEE 1588v2 Master/Slave mode
• Flexible customization combining with FPGA HW
• More tolerant for Network Jitter
• Shorten Lock time

Specifications

• IPv4 Base
• Supports both Master and Slave
• Video/Audio AP output
• 1pps output
• TC output

Supported Devices

• Cyclone V SX
• Arria 10 SX

* Please contact Macnica sales department about other devices.

Deliverables

• Binary SW
• Encrypted RTL（Verilog HDL）
• Reference design
• User’s Manual

Device Resource Utilization

• Please contact Macnica sales department.

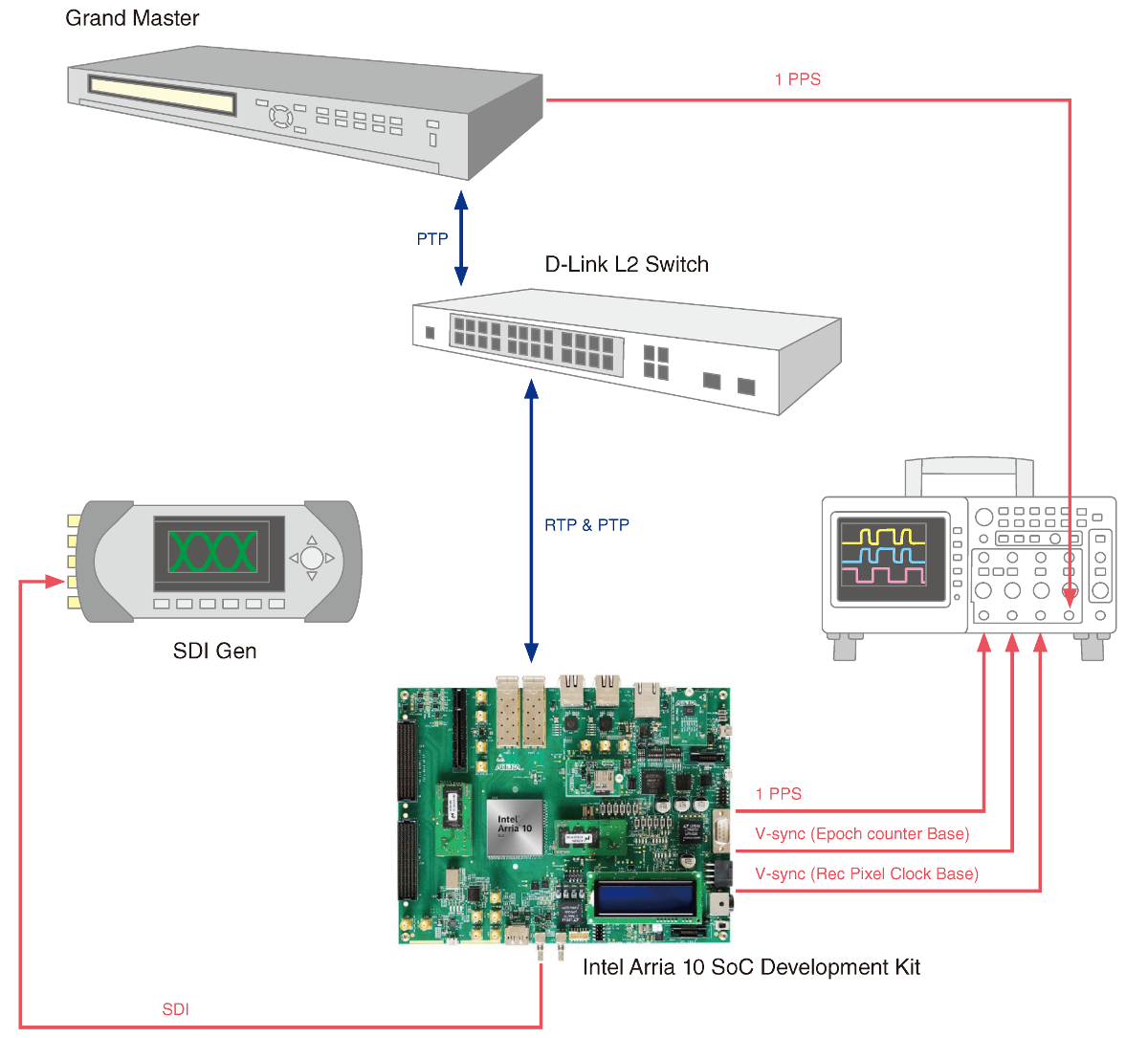

Demo Image
