Luminous IMX901 SLVS-EC Sensor EVM Kit

Luminous IMX901 SLVS-EC Sensor EVM
Luminous IMX901 SLVS-EC Sensor EVM

Overview

  • This Kit is an evaluation module with SONY IMX901 CMOS sensor. It supports SLVS-EC v3.0 interface (4 lanes) of IMX901.
  • This kit can be combined with Luminous SLVS-EC Rx FMC Card to connect to FPGA development kits with FMC connectors.
  • This kit and SLVS-EC v3.0 Rx IP can be used together to enable early evaluation/verification of the actual device.
  • For more information about the availability of this product, please contact us by clicking the "Inquiry" button at the bottom of this page.

Features

  • Equipped with SONY IMX901 AMR-C (1.4”, Approx. 16.41 million pixels, Horizontal 8K high-resolution, Wide-aspect global shutter CMOS image sensor)
  • SLVS-EC v3.0 up to 4 lanes
  • Equipped with Sensor INCK (74.25 MHz)
  • Equipped with Power Sequencer (rise and fall)
  • Samtec Edge Rate® connector
  • Includes enclosure for C/CS mount lenses
  • Includes 6" long cable

Dimensions

  • Sensor board size:    50mm x 50mm (typ.)
  • Module housing size:    56mm x 64mm x 21.42mm (typ.)

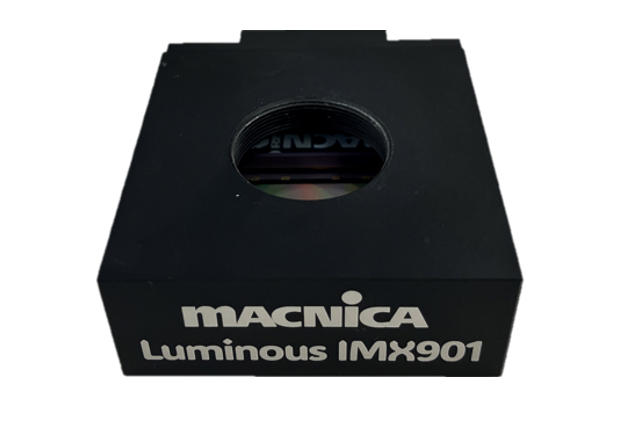

Image of "Sensor board" and "Module housing" joined together

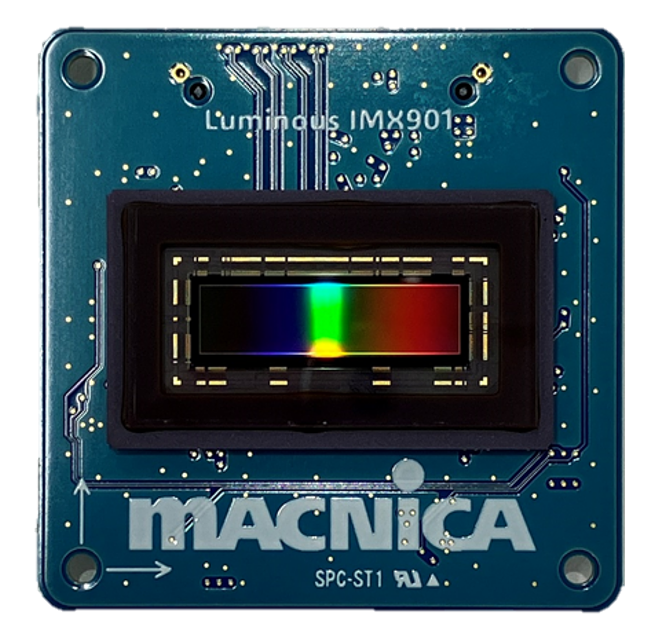

Front side of IMX901
--Front--

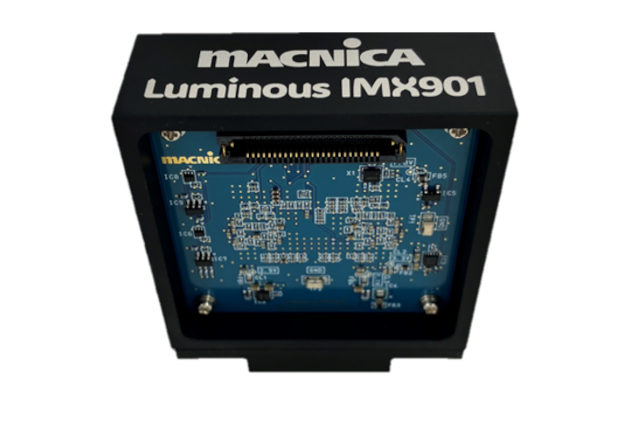

Back side of IMX901
--Back--



Block Diagram

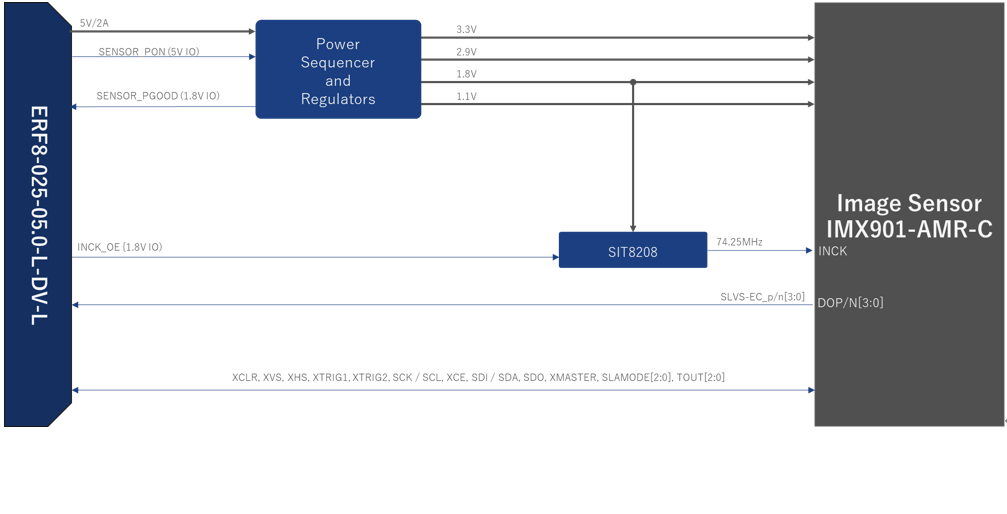

Block Diagram of IMX901 EVM

Using the Development kit

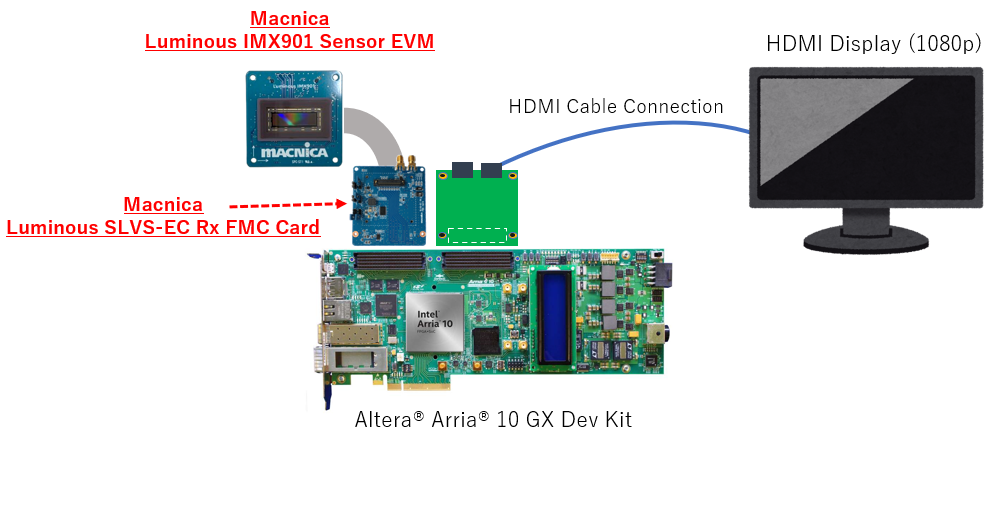

IMX901_Evaluation_kit_Usage_image_1

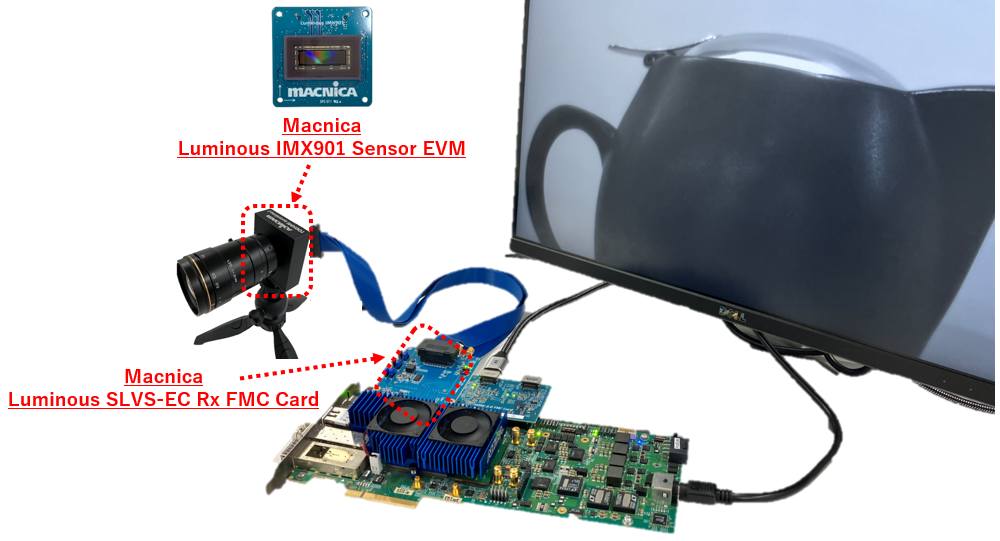

IMX901_Evaluation_kit_Usage_image_2
