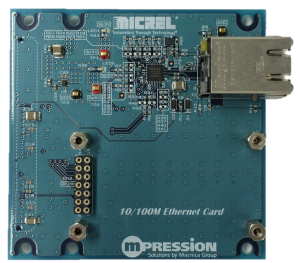

10/100M Ethernet Card
100 BaseT-1 BroadR-Reach PHY, HD camera module, DisplayPort, audio I/F daughter card
P/N: KGT100ENTCD
10/100M Ethernet Card is a daughter card to use with base boards with Altera FPGAs to attain 10/100MbitEthernet. This daughter card uses Micrel's Ethernet PHY, LDO, clock device and a HSMC connector. By connecting with an Altera FPGA based base board, FPGA designers can quickly start designs and evaluations using 10/100Mbit Ethernet interface.
Features
| Main device | Micrel Etherne PHY KSZ8081MNXIA |
| Clock device | Micrel CLK DSC1121DI1 (25MHz) |
| Power | 3.3V - Supplied from HSMC connector 2.5V - Micrel LDO MIC5366-2.5YC5 |
| Others | Power LED x2 (2.5V, 3.3V), Status LED x2 (Link/Active, Speed) HSMC connector x 1 |
Use Case Example

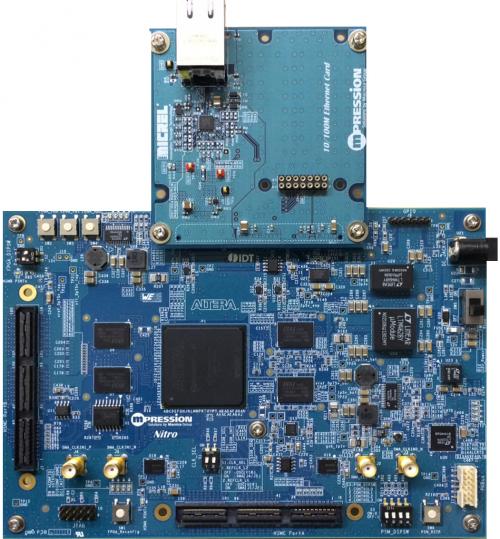

By connecting 10/100M Ethernet Card with Mpression Nitro board (sold separately) using HSMC connector, a designer can start FPGA designs using Ethernet interface very quickly. (This picture shows the case using Gigabit Ethernet Card)

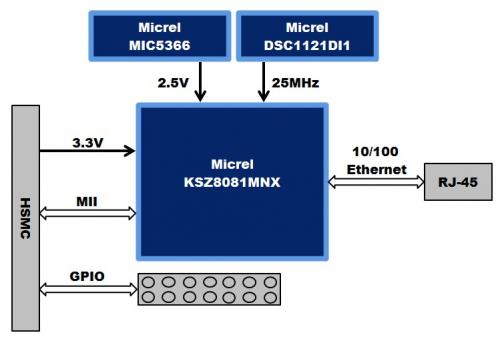

Block Diagram
