CC-Link IE Field IP (Discontinued)

Compatible with Mitsubishi Electric CP220

Features

• Supports CC-Link IE Field and Intelligent device station
• Supports Cyclic transmission and Transient transmission
  • RX/RY = 2048 bits each, RWr/RWw = 1024 words each
• Light CPU load

Merits of the IP embedded in FPGA

• Integrate user logics in addition to CP220 equivalent functions
• Implements various industrial protocols other than CC-Link IE Field on the single FPGA
• Provides a platform for multi low-volume applications
• Simple software migration from existing CP220

CC-Link IE Field IP Core Topology Check Demo

• Link to Sodia Board

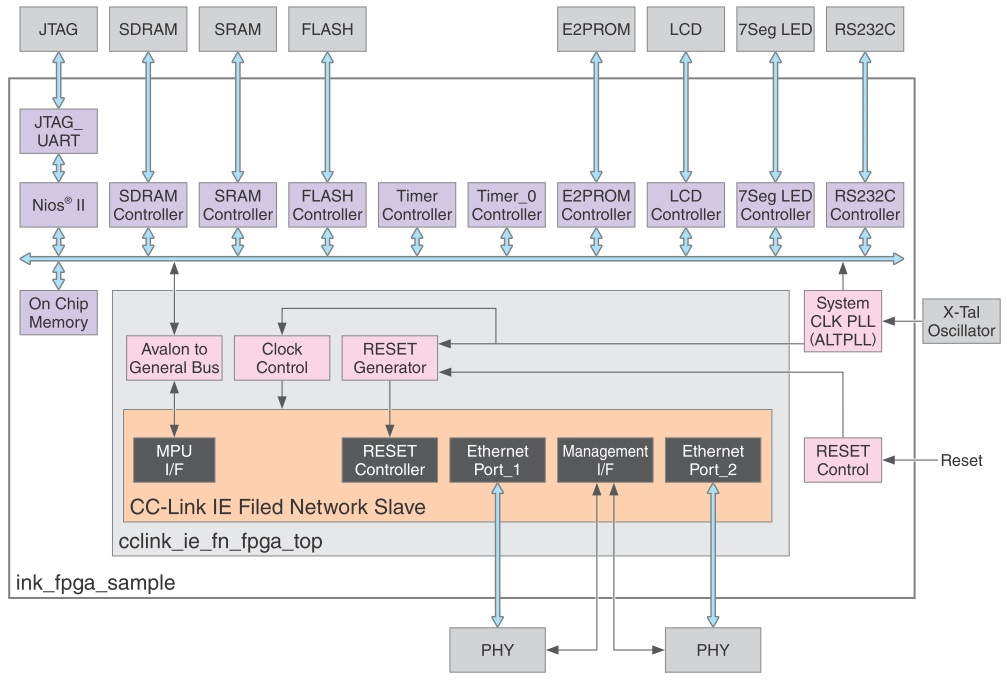

Example FPGA Configuration

Deliverables

• Encrypted RTL (Verilog HDL)
• User’s manual
• Sample Driver
