Luminous IMX537 SLVS-EC Sensor EVM Kit

Luminous IMX537 SLVS-EC Sensor EVM
Luminous IMX537 SLVS-EC Sensor EVM

Overview

  • This Kit is an evaluation module with SONY IMX537 CMOS sensor. It supports SLVS-EC v2.0 interface (8 lanes) of IMX537.
  • This kit can be combined with Luminous SLVS-EC Rx FMC Card to connect to FPGA development kits with FMC connectors.
  • This kit and SLVS-EC v3.0 Rx IP can be used together to enable early evaluation/verification of the actual device.
  • For more information about the availability of this product, please contact us by clicking the "Inquiry" button at the bottom of this page.

Features

  • Equipped with SONY IMX537-AAMJ-C (1/1.8" square pixel monochrome CMOS image sensor)
  • SLVS-EC v2.0 up to 8 lanes
  • Equipped with Sensor INCK (74.25MHz)
  • Equipped with Power sequencer (rise and fall)
  • Samtec Edge Rate® connector
  • Includes enclosure for C/CS mount lenses
  • Includes 6" long cable

Dimensions

  • Sensor board size: 50mm x 50mm (typ.)
  • Module housing size: 56mm x 64mm x 21.42mm (typ.)

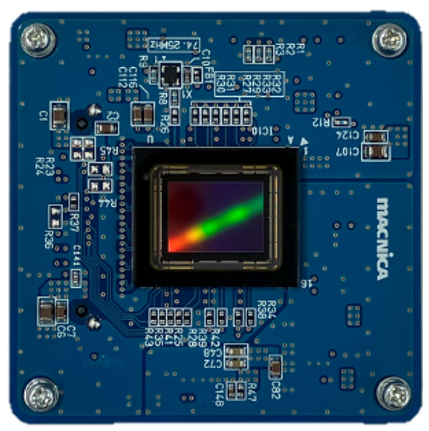

Image of "Sensor board" and "Module housing" joined together

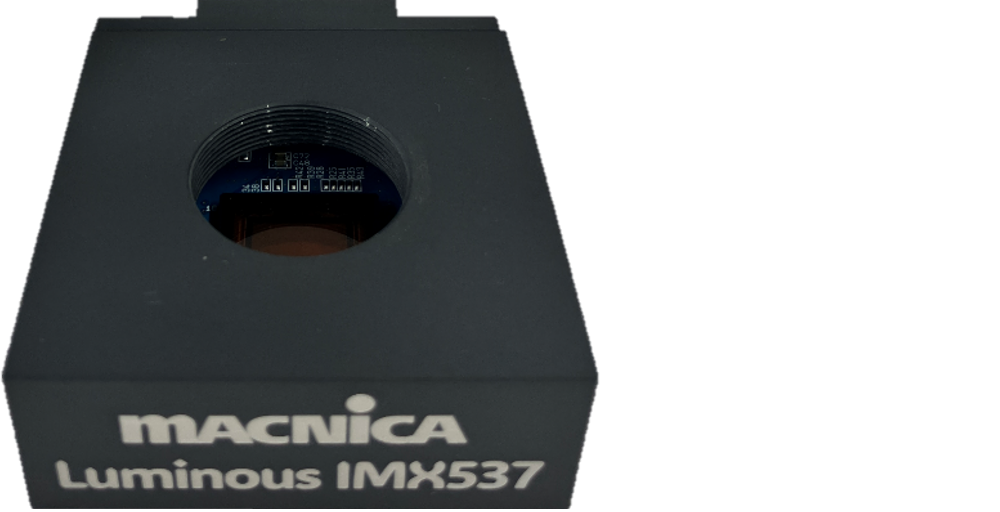

--Front--

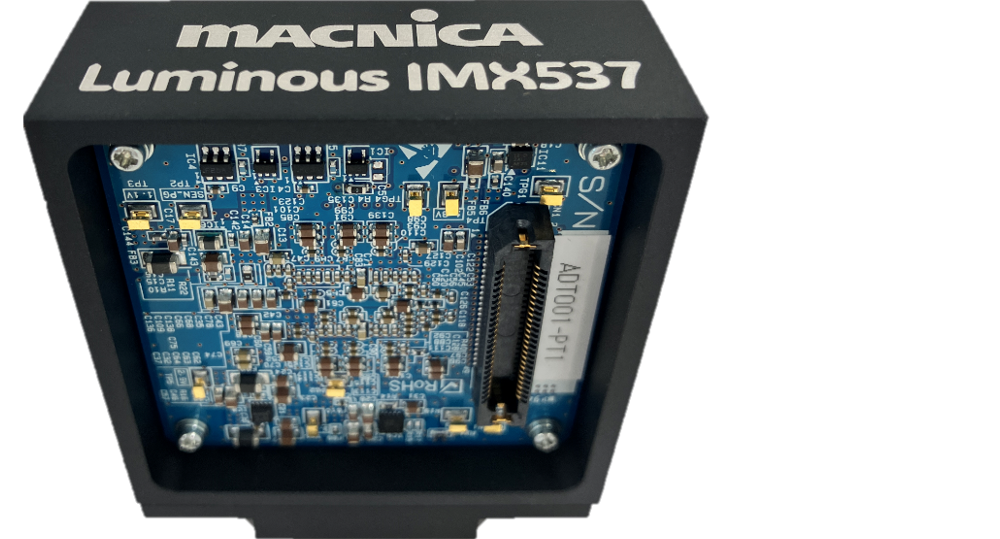

--Back--



Block Diagram

Luminous IMX537 EVM Block Diagram

Using the Development kit

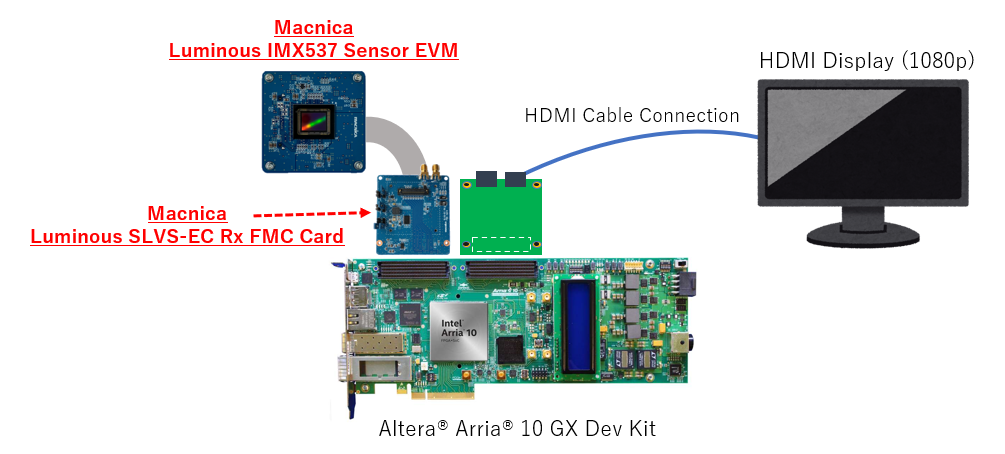

Luminous SLVS-EC Rx FMC Card Dev-Kit 1

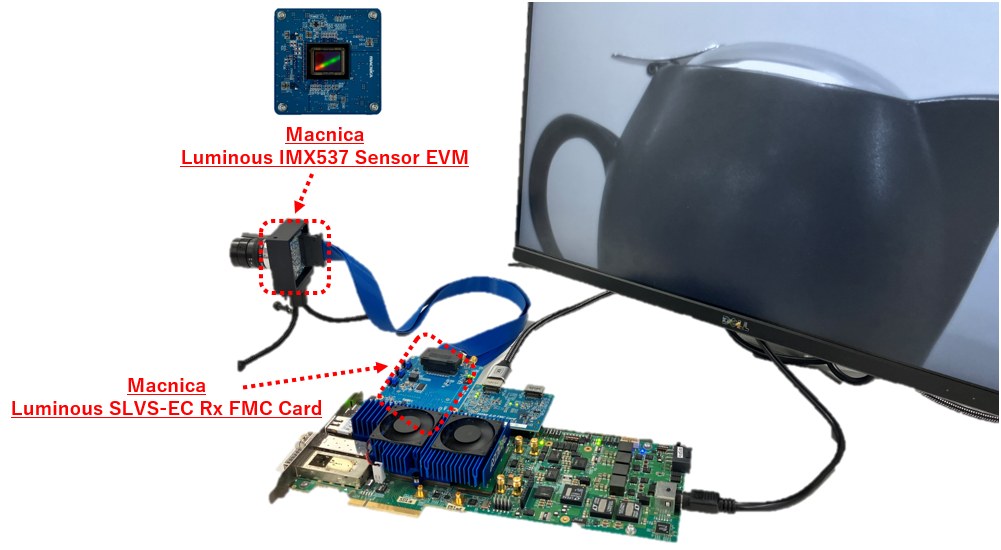

Luminous SLVS-EC Rx FMC Card Dev-Kit 2
