Beryll Board

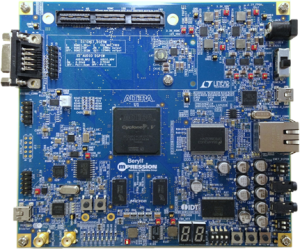

Beryll board is the evaluation board for Intel® Cyclone® V GX FPGA which is developed by Macnica.  Users can evaluate Cyclone V FPGA's various features before developing their own embedded systems. Additionally, there are variety of interfaces and expansion mezzanine connector on the Beryll board. Therefore, Beryll board is ideal platform for Jigs and suitable platform to evaluate Hard Memory Controller of DDR3 SDRAM memory and lots of interfaces extending daughter cards via HSMC.

Beryll offers evaluation circumstances that user required.

Features

FPGA 5CGXFC4C6F27C7N
FPGA configuration On board Intel® FPGA download cable, EPCS configuration device
USB 2.0 Cypress EZ-USB FX2LP™
Memory DDR3 SDRAM / FLASH / SRAM
Audio 24bit Audio Codec
Ethernet 10/100 Ethernet
Other Interfaces RS232C / SMA
Expansion connector HSMC
Display equipment 7 segment, LEDs (8pieces for user), LCD (Option)

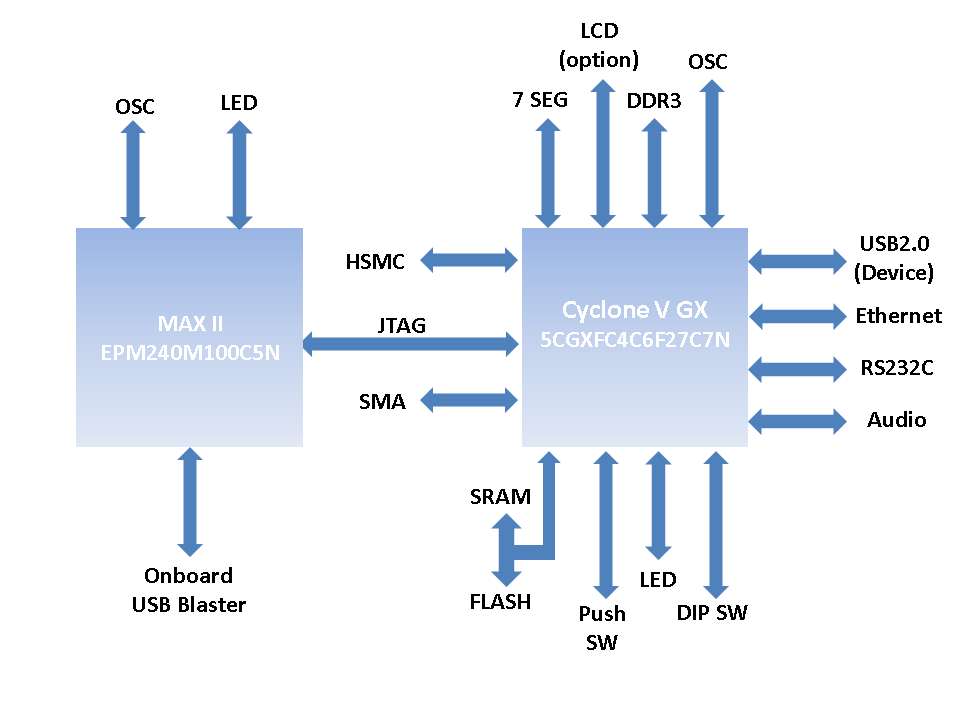

Block Diagram

Beryll Block diagram.gif
