Nitro Expansion Base Board
Intel® Cyclone® V GX multi I/O board

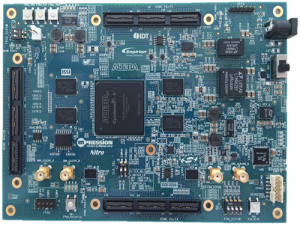

Nitro board is evaluation board for ALTERA's Cyclone® V GX FPGA which is developed by Macnica. Macnica's Nitro board has minimum components such as Altera Cyclone V GX FPGA in the center, DDR3 memories and clock ICs, and the three HSMC connectors. Users can be quickly prototyping FPGA-based multi-input/output applications in combination with various I/O daughter cards.
The Nitro board can implement two independent Soft Memory Controller which have 32-bit and 64-bit DDR3-SDRAM for high bandwidth application like frame buffer or graphic controller.
Features
| FPGA | 5CGXFC9E6F31C7N |
| FPGA configuration | JTAG Header, EPCS configuration device |
| Memory | DDR3 SDRAM(32bit/64bit) |
| Other Interfaces | SMA x2 for transceiver clock |
| Expansion connector | HSMC Expansion connector x 3 |
| Button/Display equipment | User LED x 4, Push button x 3, DIP switch x 2 |

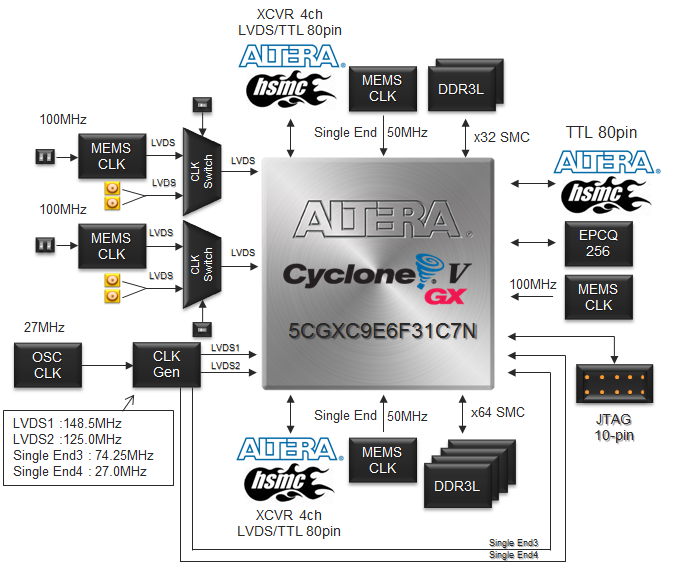

Block Diagram
