USB 3.0 HSMC CARD
USB 3.0 HSMC CARD on which Cypress's USB3.0 controller "EZ-USB® FX3™" is mounted supports Intel® High-Speed Mezzanine Connector (HSMC), and then supports Intel's development kits via HSMC. By using the USB 3.0 HSMC CARD, customers can implement USB 3.0 interface easily in their system.
Features
| Main device | EZ-USB FX3 (CYUSB3014-BZXI) |
|---|---|
| Clock device | RIVER ELETEC FCXO-05 19.2MHz RIVER ELETEC FCXO-05D 32.768kHz |
| Interface | USB3.0 (Type B、Micro Connector), Headers (UART、I2S、I2C) |
| Other Features | Evaluating USB3.0 with Intel® FPGA by connecting FPGA development kit through HSMC interface which is expansible. Having a fully configurable General Programmable Interface (GPIF II), it can be connected to Intel's FPGA, a USB Video Class (UVC) reference design developed by Macnica, and Cypress's EZ-USB FX3™ USB 3.0 controller to enable Full HD (1920 x 1080＠60fps) uncompressed high quality video streaming. |
Video Input Evaluation Environment

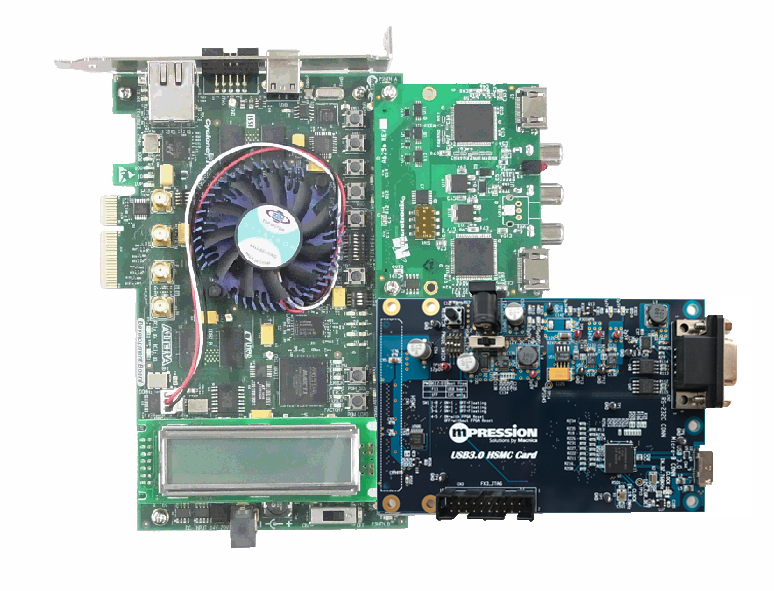

By using Microtronix HDMI HSMC Card (option), it is possible to evaluate video live with USB 3.0 like a composition example below with Cyclone® IV GX FPGA Development kit.
Block Diagram
