LVDS Interface Card (Discontinued)

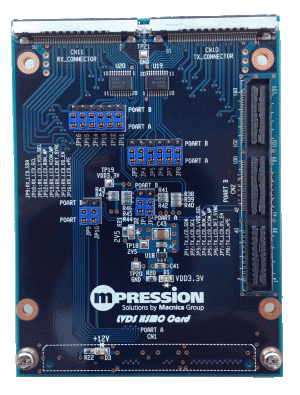

LVDS-Top (New)3_0.gif

By using LVDS cables (BANDO DENSEN Co., Ltd.) delivered with LVDS interface card, it enables LVDS interface evaluation with Intel® development kits.

Since this interface card is designed not only LVDS connectors for Tx (transmission) / Rx (receive) but HSMC connector for external cable connection, you will evaluate the other I/O pins function except LVDS pins with using with Terasic's HSMC High Speed Cable.

This LVDS interface card can easily provide you LVDS evaluation environment with Intel® development kit via HSMC connection.


Main Device TI SN74LVC541APW (Level shift buffer)
TI PCA9306DCTR (I2C Level shift buffer)
HSMC Connector Samtec ASP-122952-01 (Port A)
Samtec ASP-122953-01 (Port B)
LVDS Connector JAE Electronics FI-RE51S-HF

Evaluation Environment Example

By using the delivered LVDS cable, it enables that not only simple Tx (transmission) / Rx (receiver) evaluation but both Tx & Rx  verification simultaneously through loop-back evaluation without external board connection.

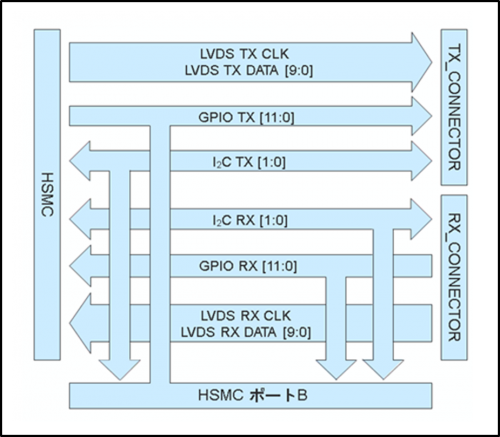

Block Diagram


For more information:
