IEEE1588GE Card (Discontinued)
HSMC daughter card for evaluation of IEEE1588 precision time protocol
 |
 |
|

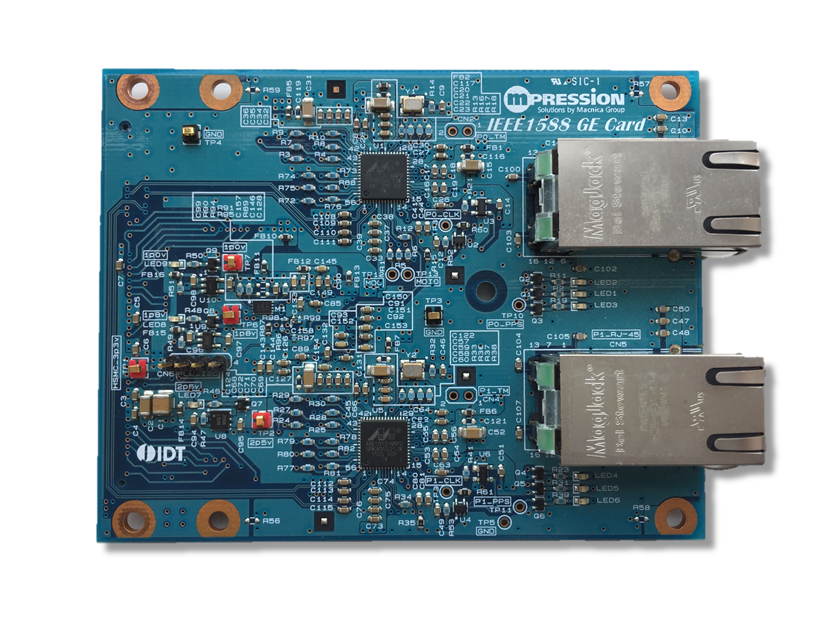

Top |

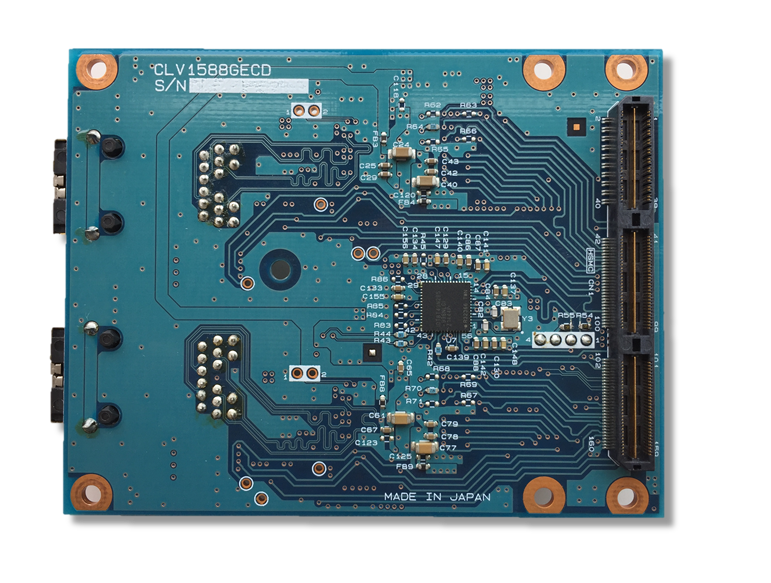

Bottom |
This card is a daughter card for expanding functions to support IEEE1588 Precision Time Protocol standard, that complies with High-Speed Mezzanine Card specifications. By inserting this card into an evaluation board, you can use a variety of FPGA functions to evaluate Gigabit Ethernet concerning IEEE1588.
The evaluation board which has been verified to connect with this card so far is Macnica Nitro – Cyclone® V GX I/O expansion base board.
Related solution: IEEE1588 Protocol Stack Package
Note: Nitro Cyclone® V GX I/O expansion base board and IEEE1588 Protocol Stack Package can be purchased separately.
Specifications
| External Dimensions | 78.105 mm × 100.00 mm |
| Printed circuit board | 6-layer FR4 |
| HSMC | 1 |
| Power Supply | 3.3V、2.5V、1.8V、1.0V |
| Gigabit Ethernet PHY | MARVELL 88E1512 x 2 |
| IDT clock | IDT 8T49N285 |
| Interface | RJ45 x 2 |

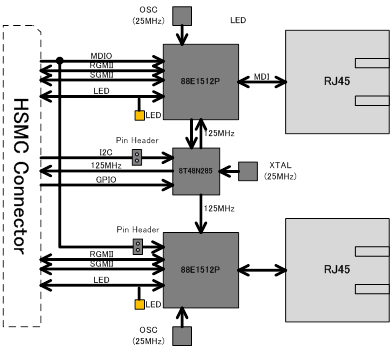

Card Block Diagram
Evaluation Example

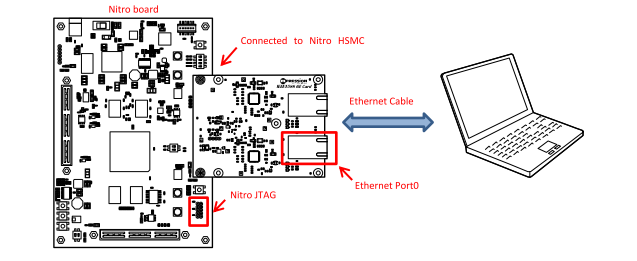

Nitro Board and IEEE1588 GE Card for Ping Test
Ordering Information
| Product Name | 1588 GE MARVELL HSMC CARD |
| Part Number | 1588GEMVLHSMCCD |
Packing List
| IEEE1588 GE Card | 1 pcs. |
|---|---|
| 5-mm spacer | 2 pcs. |
| Washer | 2 pcs. |
| Nut | 2 pcs. |
| 4-mm pan-head screw | 2 pcs. |
| Packing list/precautions (Japanese) | 1 sht. |
| Packing list/precautions (English) | 1 sht. |
