V-by-One® HS plus Tx/Rx IP

High-speed serial interface compliant with V-by-One® HS plus standard

IP core for FPGAs that supports “V-by-One® HS plus Standard”, the next-generation high-speed interface standard technology developed by THine Electronics Inc.

Overview

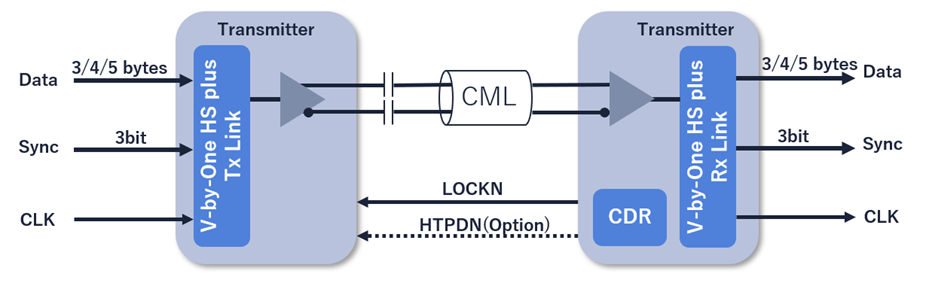

V-by-One® HS plus Tx/Rx IP is an IP to enable Altera® FPGAs to send and receive signals compatible with the latest “V-by-One® HS plus Standard”.

V-by-One® HS plus Tx/Rx IP

Overview of V-by-One® HS plus Standard

V-by-One® HS plus is a next-generation high-speed interface standard proposed and developed by THine Electronics, Inc.. Key points are as follows:

  • Maximum transmission speed of 8Gbps/lane
    • Twice the speed of conventional technologies, supporting higher resolutions for LCD TVs, OLED TVs, etc., and higher refresh rates for gaming applications.
  • Cable reduction and slimming
    • Contributes to reduction in system cost and power consumption through cable reduction and slimming of transmission paths inside equipment.
  • Ensuring backward compatibility
    • Two modes are defined: "HS Mode," which has backward compatibility with conventional V-by-One® HS, and "HS plus Mode", which enables transmission at up to 8Gbps/lane.
  • Improved user convenience
    • Following the basic protocol and design concept of the existing V-by-One® HS, this next-generation high-speed interface standard has low hurdles for introduction.

Features of this IP

Supported Configurations

  • Byte Mode
    • Supports 3-byte, 4-byte, or 5-byte modes.
  • Number of Lanes
    • Supports aggregation of up to 32 lanes.
  • Backward Compatibility
    • Supports both "HS Mode" and "HS plus Mode".

Transfer Speed

  • Maximum 8.0 Gbps/lane

Other Functions

  • Test Pattern Modes
    • Supports PRBS7, PRBS9, K28.1, and V-by-One HS plus
  • Inter-lane Deskew (at Rx)
    • Maximum 15 symbol clocks

IP Release Schedule (by Supported FPGA)

Altera® Devices

  • Arria® 10 GX FPGA
  • Cyclone® 10 GX FPGA
  • Agilex™ 7 FPGA           *Supported on F-Tile products.
  • Agilex™ 5 FPGA           *Please contact us.

Demo Configuration Examples

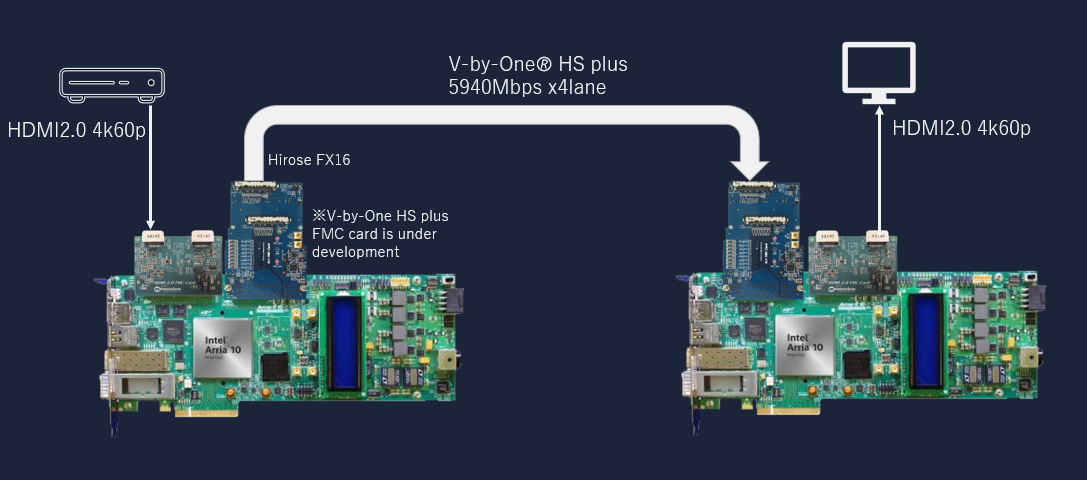

Demo Configuration
