HDMI 2.0 Tx IP / HDMI 2.0 Rx IP (Discontinued)
Enables High speed interface compliant with HDMI 2.0 standard
HDMI 2.0 Tx/Rx IP provides transmit/receive functions of HDMI 2.0 standard for Intel FPGA. Its maximum transfer rate is 18 Gbps enabling to transmit and receive up to RGB 24 bit 4k2k@60p video.
Users can bring their HDMI 2.0 compliant products to market very quickly and easily.
Features
- Enables HDMI 2.0 transmission and reception with Intel FPGA
- 18 Gbps maximum transfer rate, supports RGB 24 bit 4k2k@60p transmit and receive (however, depends on the FPGA used)
- HDMI operation confirmed by the third-party compliance test.
Specifications
- Supports DVI Mode
- Supports Deep Color (30 bit/36 bit/48 bit) Mode
- Supports Display Data Channel (DDC), Status and Control Data Channel (SCDC) control
- Supports Hot Plug Detect, +5V Power Drive control
- Supports Audio
*1: The function below is not supported.
・Content Protection
*2: The functions below require to be provided outside of the IP.
・Consumer Electronics Control (CEC)
・HDMI Ethernet and Audio Return Channel (HEAC)
Supported Devices
- Cyclone V GX (Transfer Rate Limited)
- Cyclone 10 GX
- Arria V GX (Transfer Rate Limited)
- Arria 10 GX
Please contact Macnica sales department about other devices.
Deliverables
- Encrypted RTL (Verilog HDL)
- Reference design
- Simulation environment (For ModelSim)
- User’s manual, Reference manual, Simulation manual
Device Resorce Utilization
Direction | Device | Symbols per Clock |
Resource | |||
---|---|---|---|---|---|---|
ALMs | Register | Block Memory (M20K or M10k) |
DSP Block | |||
TX | Cyclone V GX | 2 | 1808.0 | 3560 | 9 | 0 |
4 | 2578.0 | 4026 | 21 | 0 | ||
Arria V GX | 2 | 1887.0 | 3561 | 9 | 0 | |
4 | 2715.0 | 4011 | 22 | 0 | ||
Stratix V GX | 2 | 1873.0 | 3493 | 9 | 0 | |
4 | 2648.0 | 4579 | 15 | 0 | ||
Arria 10 GX | 2 | 1939.0 | 3487 | 9 | 0 | |
4 | 2672.0 | 4603 | 15 | 0 | ||
RX | Cyclone V GX | 2 | 3469.0 | 5221 | 7 | 0 |
4 | 5690.0 | 7996 | 10 | 0 | ||
Arria V GX | 2 | 3453.0 | 5216 | 7 | 0 | |
4 | 5710.0 | 8054 | 10 | 0 | ||
Stratix V GX | 2 | 3395.0 | 5038 | 7 | 0 | |
4 | 5670.0 | 7898 | 10 | 0 | ||
Arria 10 GX | 2 | 3447.0 | 5072 | 7 | 0 | |
4 | 5728.0 | 7821 | 10 | 0 |
* The values in the above table are based on an implementation example. There may be some variation depending on the user’s system configuration.
Evaluation Environment

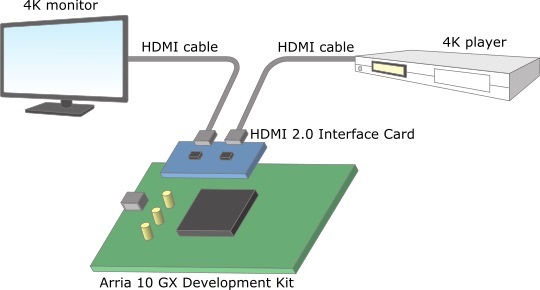

Video from a 4K player is received by the receiver IP, and the video is output to a 4K monitor from the transmitter IP.
Category | Product Name | Vendor |
---|---|---|
Base Board | Arria® 10 GX FPGA Development Board | Intel |

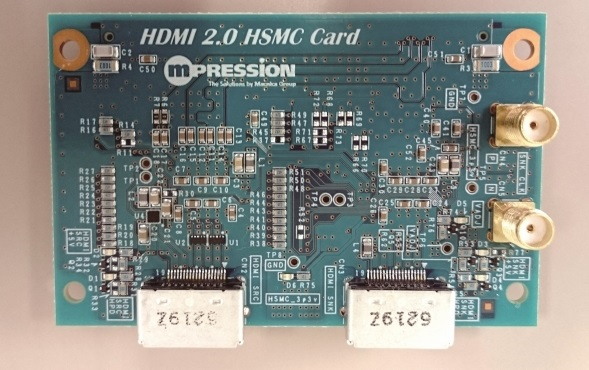

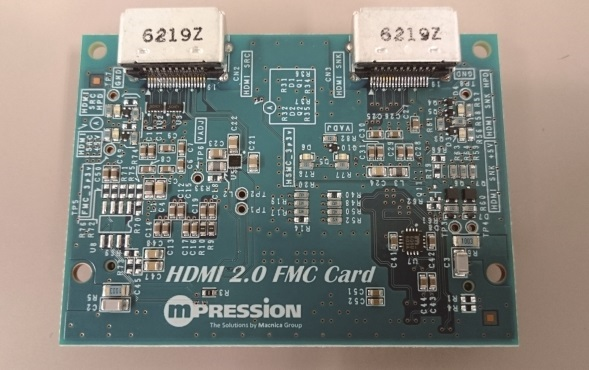

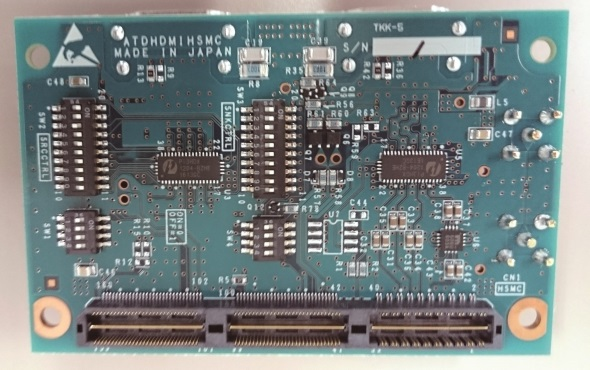

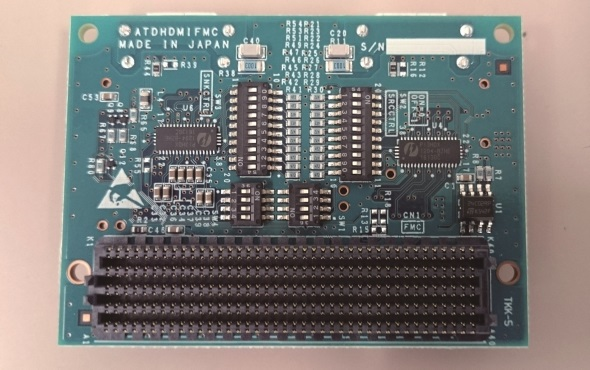

Daughter Card | HDMI 2.0 Interface Card | Mpression |
![]() |
![]() |
![]() |
![]() |
