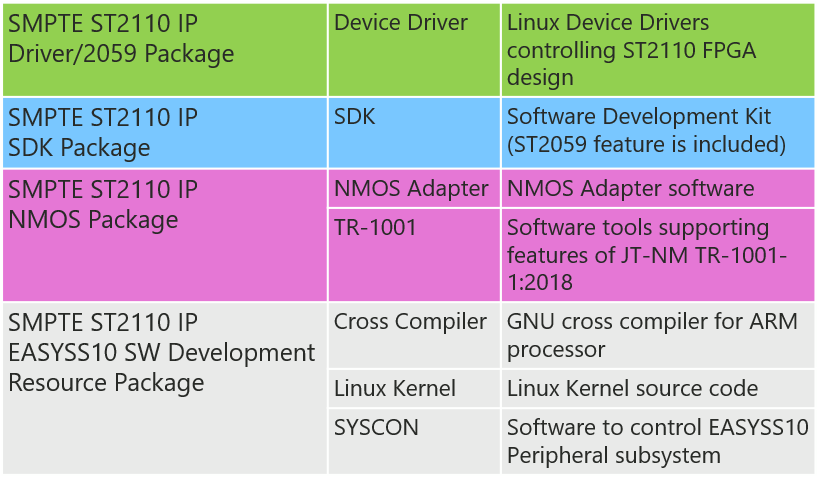

EasySS

EasySS is a System-On-Module for realizing SDI-IP Gateway conforming to SMPTE® ST2110 standard. SMPTE® ST2110 is the Video/Audio/Ancillary over IP*1 standards suite for Professional media industries, which contributes the movement from SDI to IP-based broadcasting applications.
EasySS implements "Media over IP*1 Package" developed by MACNICA on the FPGA, and by combining it with the baseboard, it is possible to evaluate the SDI-IP gateway immediately.
        *1: Internet Protocol
        *2: Intellectual Property

EasySS Sytem-On-Module Image

EasySS



EasySS Basebord Image

EasySS Baseboard



Features

  • System-On-Module
  • SMPTE ST2110 standard based SDI-IP Gateway function
  • Immediate evaluation by combining with the baseboard
  • Big savings of time and cost

Specifications

Edition 10G 25G
Direction Duplex Simplex
Video Input

HD-SDI x6ch
3G-SDI x3ch
Quad 3G-SDI(2SI) x1ch*

HD-SDI x8ch
3G-SDI x8ch
Quad 3G-SDI(2SI) x2ch
12G-SDI x2ch*
Video Output HD-SDI x8ch
3G-SDI x8ch
Quad 3G-SDI(2SI) x2ch
12G-SDI x2ch*
Ethernet Interface For SMPTE 10GBase SFP+ x2ch
1GBase-R SFP x2ch (for PTP)*
25GBase SFP28 x2ch
1GBase-R SFP x2ch(for PTP)*
REF OUTPUT Black Burst : NTSC or PAL
Tri-Sync* : 1080/60/59.94/50I

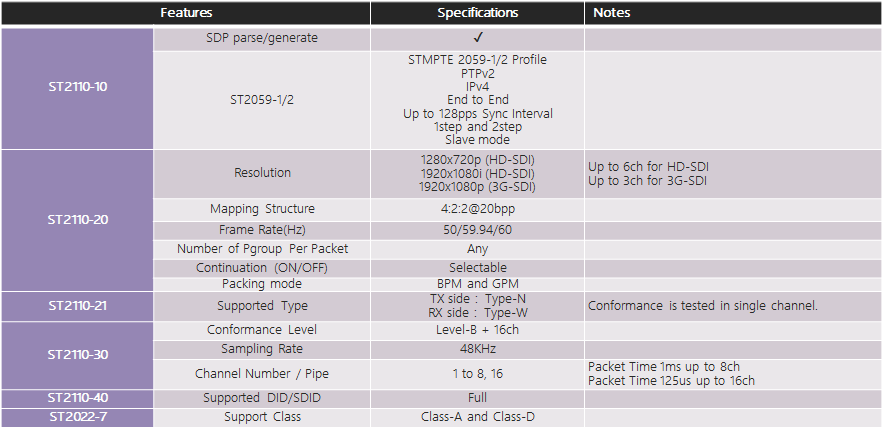

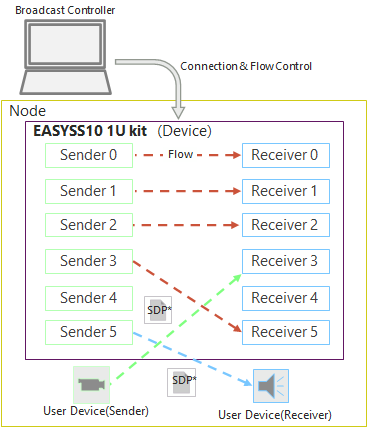

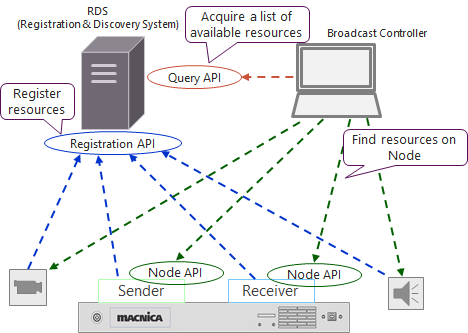

Supported SMPTE Profile SMPTE 2110 -10/-20/-21*/-30/-31*/-40
SMPTE 2022 -6*/-7/-8*
SMPTE 2059 -1/-2
Codec TICO*
JPEG-XS* (ST2110-nn)
---

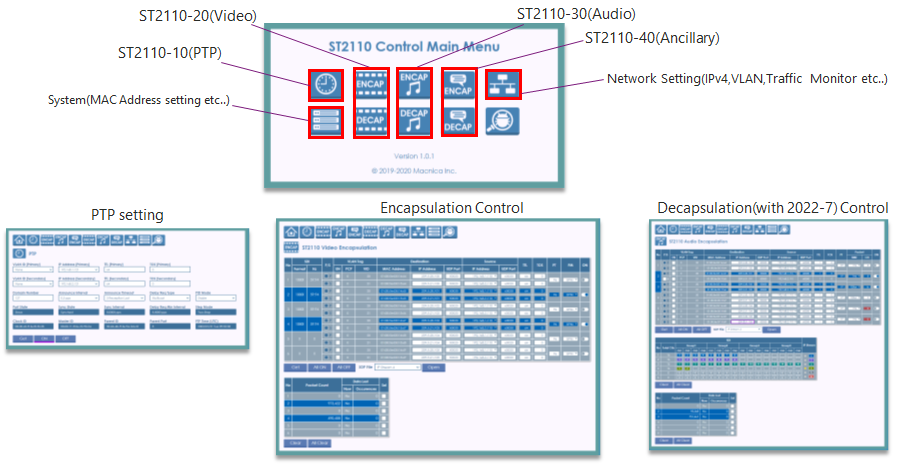

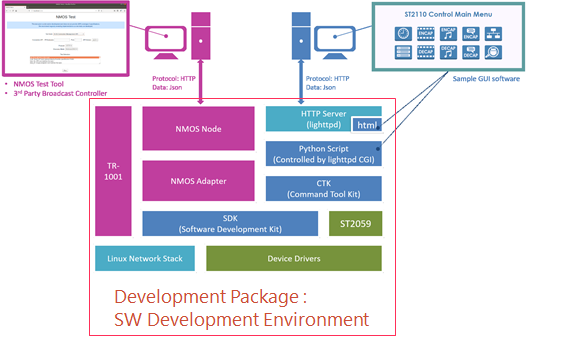

Control Interface 1000Base-T(RJ45), UART(USB), USB-OTG
Supported IGMP version IGMP v2, v3
Other Remote FW Update, Alarm Monitoring
Stacking Connector High Density 200pin (T.B.D.)
Size of EasySS W x D x H (mm) 90 x 100 x 33 (T.B.D.)
Power of EasySS DC +12V / 2A (T.B.D.)
Size of Ref Board W x D x H (mm) 160 x 280 x 38 (T.B.D)
Power of Ref Board DC +12V / 2A (T.B.D.)

*: Preliminary

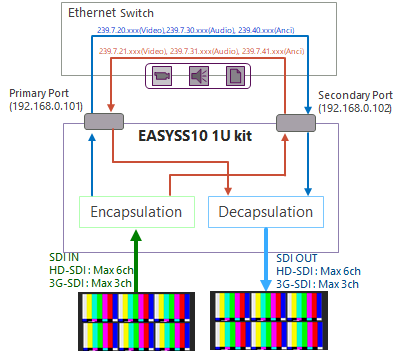

Block Diagram

Block Diagram

Schedule

  • 10G version
    • ES: June 2019
    • Production: September 2019
  • 25G version
    • ES: September 2019
    • Production: December 2019

Expected Customers

  • Broadcasting equipment makers
  • SDI based equipment makers (e.g. High-end Projectors, etc.)
