SMP FMC Card (Discontinued)
FMC daughter card with SMP connector for evaluation of High Speed Serial Transceivers in FPGA
 |
 |
|

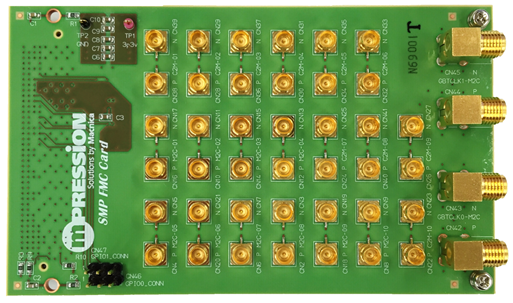

Top |

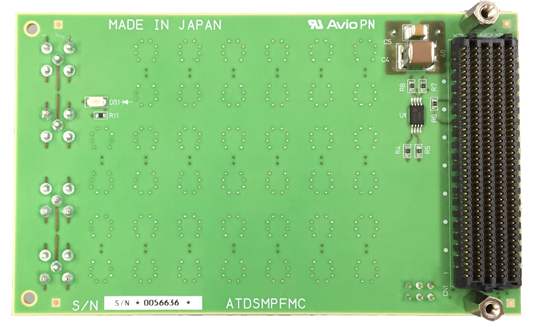

Bottom |
This card is an FPGA Mezzanine Connector (FMC) daughter card that complies with HPC standard. By inserting this card into an FPGA evaluation board, you can evaluate high-speed serial transceivers of the FPGA by utilizing a variety of FPGA functions.
The evaluation board which has been verified to connect with this card so far is the Intel® Arria® 10 GX FPGA development kit.
Note: Intel® Arria® 10 GX FPGA Development Kit can be purchased separately.
Specifications
| Product Specifications | SMP FMC CARD |
| External Dimensions | 69 mm x 115 mm |
| Printed circuit board | 8-layer MEGTRON6 |
| FMC | Samtec ASP-134488-01 |
| Power Supply | 3.3 V from FMC |
| Interface | SMP connector Input x 10 pairs SMP connector Output x 10 pairs Clock input SMA x 2 pairs |
Block Diagram
SMP FMC Card Block Diagram
Evaluation Example

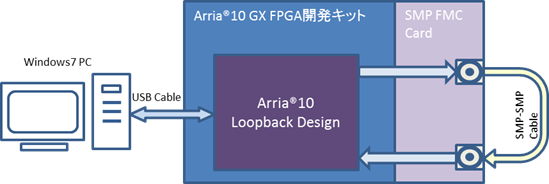

SMP FMC Card Transceiver Toolkit Loopback Design Block Diagram
Ordering Information
| Product Name | SMP FMC CARD |
| Part Number | SMPFMCCD |
Packing List
| SMP FMC card | 1 pcs. |
|---|---|
| SMP-SMP cable | 2 pcs. |
| 37-mm spacer | 2 pcs. |
| 10-mm spacer | 2 pcs. |
| Pan-head screw | 4 pcs. |
| Packing list/precautions(Japanese) | 1 pcs. |
| Packing list/precautions(English) | 1 pcs. |
